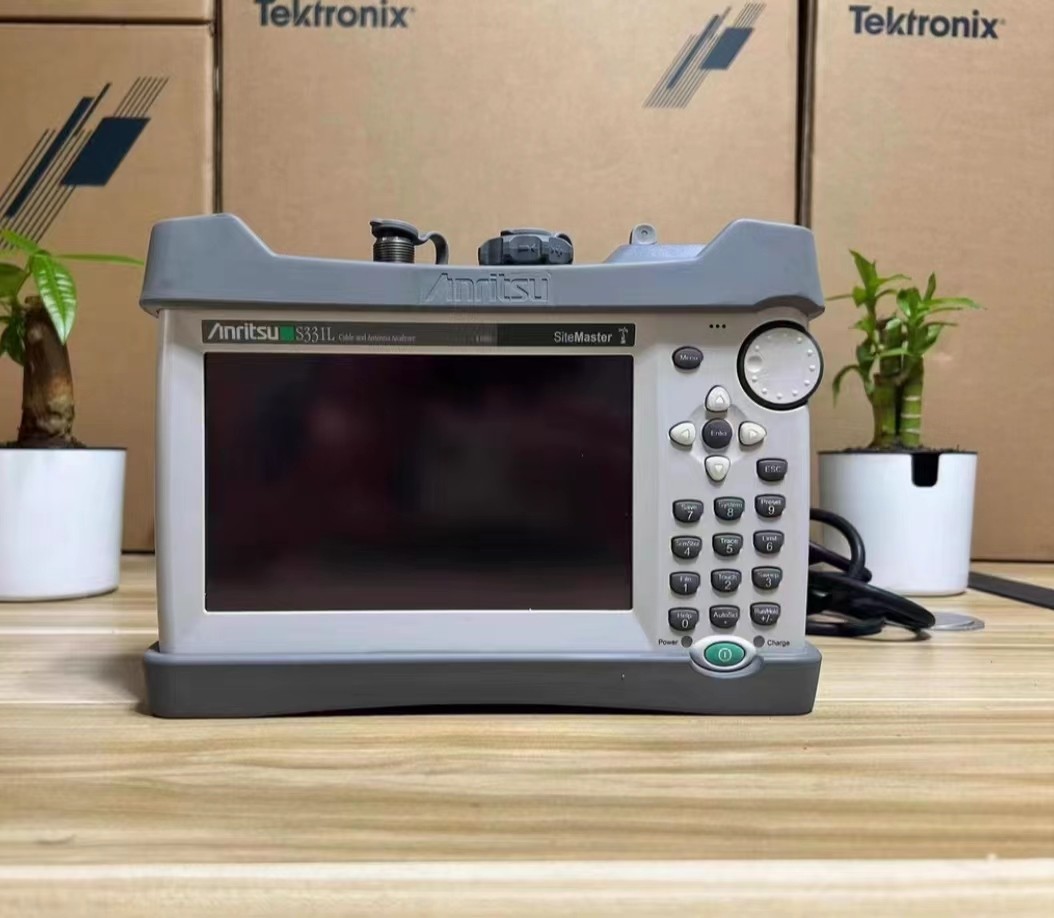

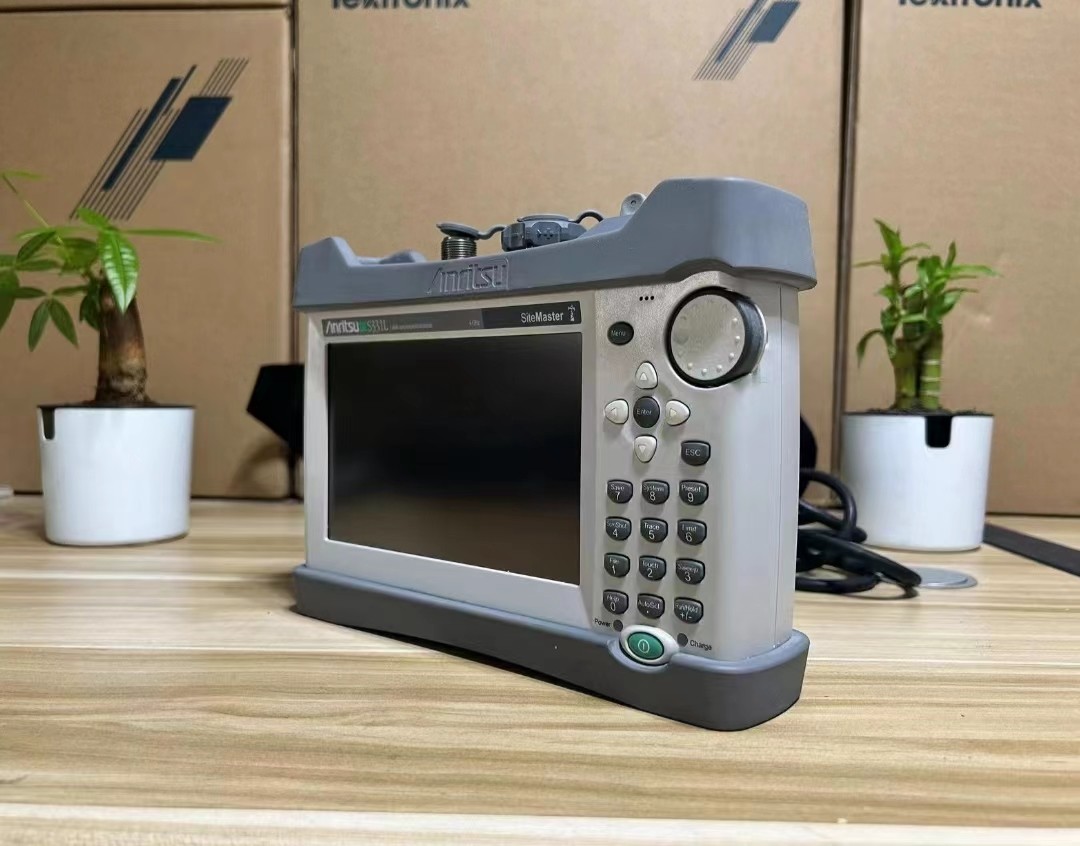

The S331L is a rugged, handheld cable and antenna analyzer. Utilizing the latest advancements in technology, the S331L has been optimized for field conditions, is easy to use, and has efficient sweep management capabilities. The S331L delivers an entire workday of battery operating time. With its large outdoor viewable 7” TFT touch screen display, intuitive GUI, and classic mode, the S331L can significantly increase a user’s efficiency in the field.
- Return Loss
- VSWR
- Cable Loss
- Smith Chart (50/75 ohm selectable)
- 1-port Phase
- Distance-to-Fault Return Loss
- Distance-to-Fault VSWR
- RF Power (50 MHz to 4 GHz)
- VIP Mode; Optical connector inspection with IEC 61300-3-35 based Pass/Fail standard (requires USB Video Inspection Probe G0306A, sold separately)
The S331L is the highest value in a rugged, handheld cable and antenna analyzer. The S331L replaces the current value line S331D which is part of the longest running portable cable and antenna analyzer family in history. Utilizing the latest advancements in technology, the S331L has been optimized for field conditions, is easy to use, and has efficient sweep management capabilities. The S331L delivers an entire workday of battery operating time, the most ever offered in a handheld cable and antenna analyzer. With its large outdoor viewable 7” TFT touch screen display, new intuitive GUI, and classic mode that mimic the S331D basic measurement flow, the S331L is very easy to use, and can significantly increase a user’s efficiency in the field.
Features of Anritsu S331L:
- 2 MHz to 4 GHz Handheld Cable and Antenna Analyzer, impact, dust, and splash resistant
- More than 8 hours of continuous battery operation
- Standard built-in InstaCal™ module and Power Meter
- FlexCal™ maintains calibration with frequency changes
- Built-in one button Help function
- 800 x 480 7” TFT touch screen display and multiple USB ports
- Internally store >1000 files with fast preview of stored traces
- Supported by Multiwave Smart Aligner Android application
- Industry standard *.dat format compatible with Line Sweep Tools (LST) and HHST
- Optical Connector Inspection (requires Visual Inspection Probe)
List of Options
The S331L is an all-inclusive instrument with a built-in InstaCal™/Power Meter module. The S331L arrives fully capable of measuring:
- VSWR
- Return Loss
- Cable Loss
- Distance-To-Fault VSWR
- Distance-To-Fault Return Loss
- RF Power
No options are required to perform these measurements, however a test port cable is required to complete calibration(s). Please be sure to refer to the brochure or datasheet for additional accessories such as a phase stable test port cable or hard transit case to complement your S331L.
