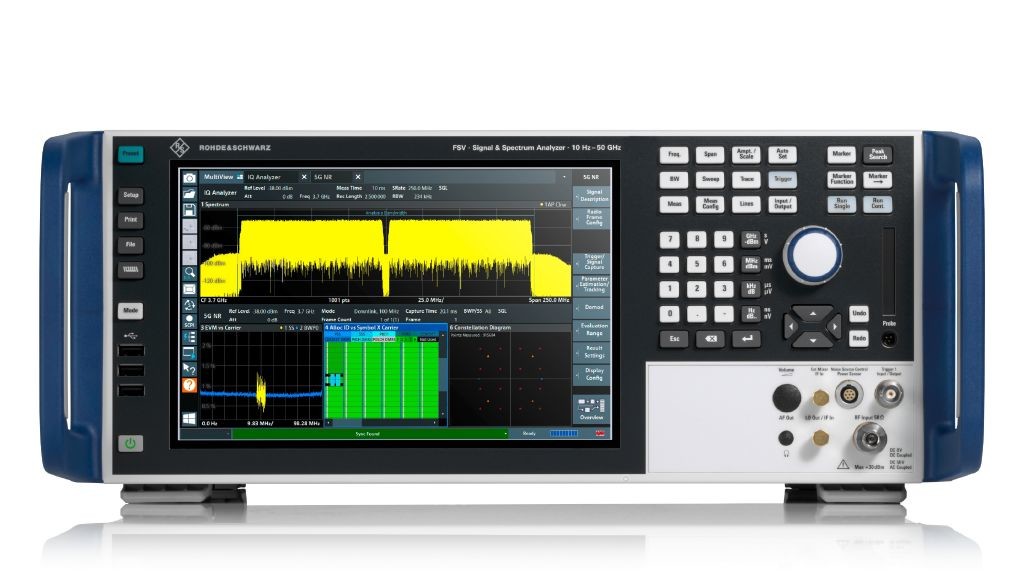

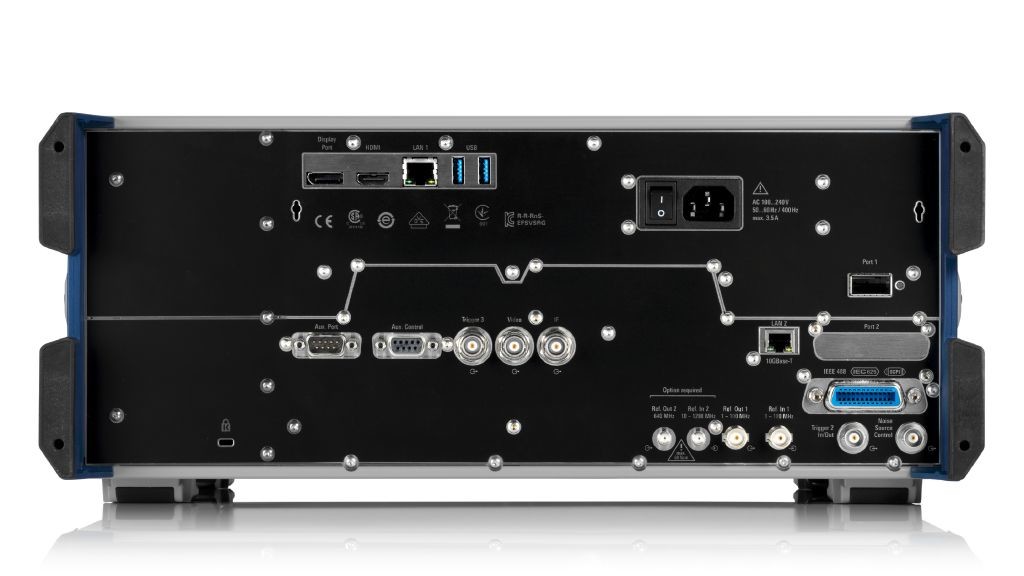

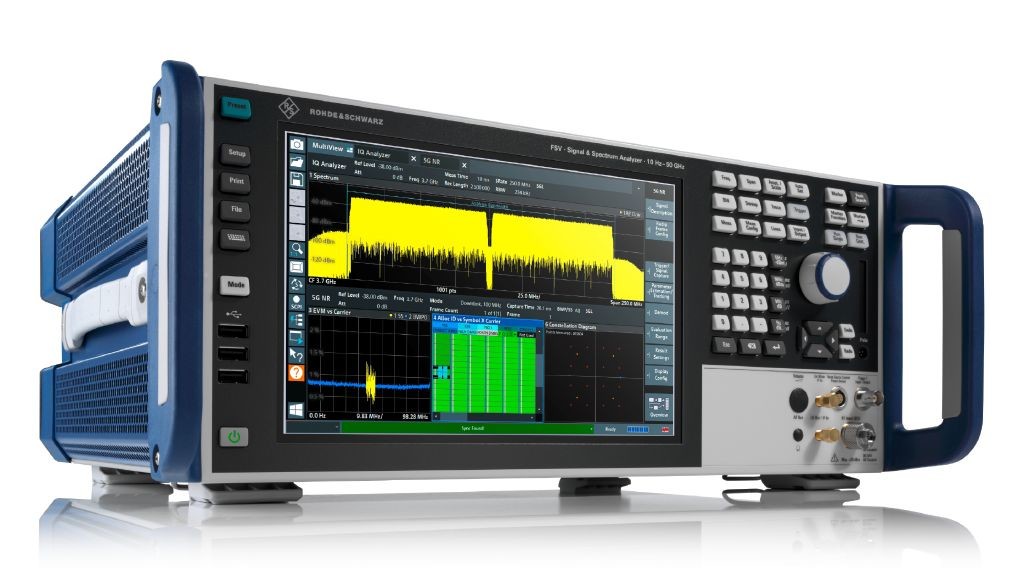

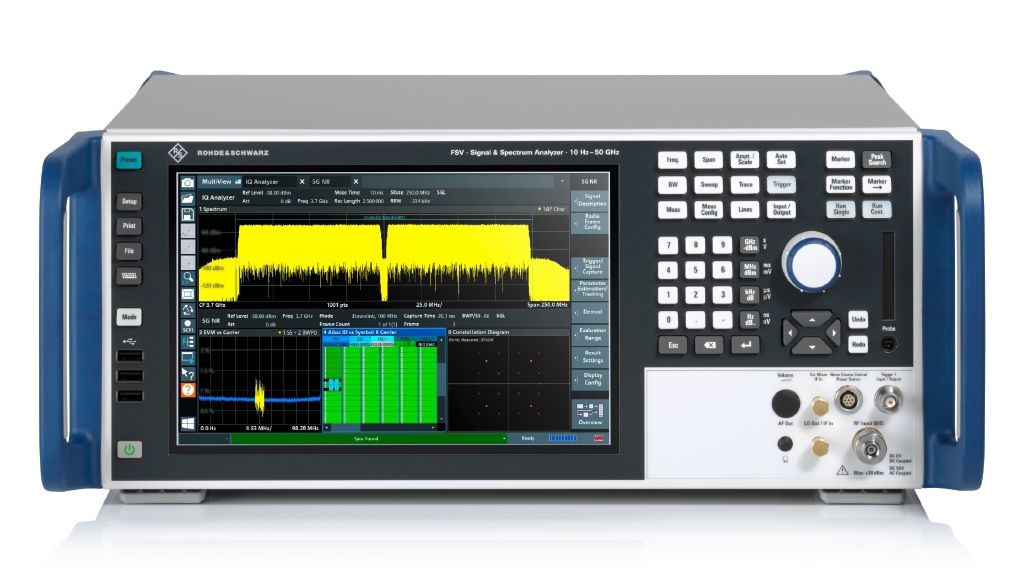

Signal Spectrum Analyzer Rohde & Schwarz FSV3050
Description of FSV3050 Spectrum and Signal Analyzer
The R&S®FSV3000 signal and spectrum analyzer performs measurements at the push of a button, uses event based actions for capture and makes script programming simple with a SCPI recorder – for quick setups of complex measurements. Fast measurement speeds for high throughput in production applications are another major advantage.
Key facts of FSV3050

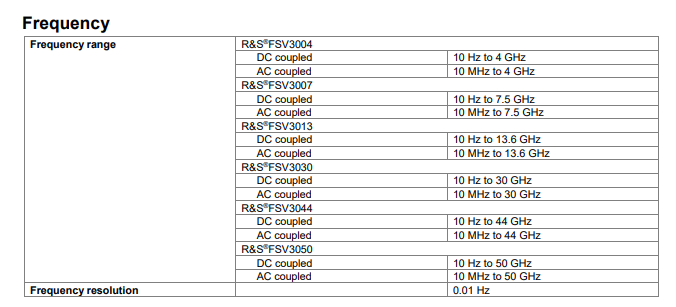

- Frequency range: 10 Hz to 50 GHz
- Analysis bandwidth up to 200 MHz
- GUI with multi-touch, SCPI recorder and event based actions

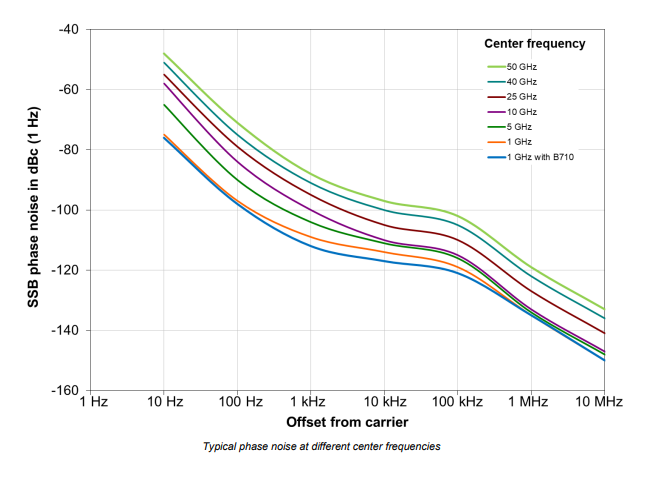

- SSB phase noise at 10 kHz offset (1 GHz): –114 dBc/Hz
Product data applies under the following conditions:
• Three hours of storage at ambient temperature followed by 30 minutes of warm-up operation
• Specified environmental conditions met
• Recommended calibration interval adhered to
• All internal automatic adjustments performed, if applicable
Basic RF measurements typically require the center frequency, span, level and probably the resolution bandwidth to be configured. Finding the ideal settings can be tricky when measuring an unknown signal. The R&S®FSV3000 features a multitouch display and intuitive menu structure for exceptional ease of operation. A one-finger swipe across the screen adjusts the center frequency or the reference level. Two-finger gestures adjust the displayed span or level range. The right settings are done in no time. Various measurements can be displayed simultaneously in separate windows on the large 10.1" screen. This greatly facilitates result interpretation. The MultiView function displays all active measurements on one screen. With the sequencer function, all channels are measured consecutively, one after the other. The user is provided with constantly updated results, and no time-consuming parameter adjustments are necessary
The R&S®FSV3000 embedded SCPI recorder accelerates the programming of executable control scripts. All manual user input is translated into SCPI commands that can be exported as plain SCPI or in the syntax of common programming languages and tools such as C++, Python and MATLAB®. If manual code adaptation is required, context-sensitive online help provides comprehensive information, including SCPI commands and parameters.
Options of FSV3050:
| B8E | Resolution bandwidth up to 40 MHz |
| B11 | YlG preselector bypass |
| B21 | LO/lF connections for external mixers |
| B25 | Electronic attenuator, 1 dB steps |
| K703 | 1 GHz reference |
| B114 | Enhanced computing power |
| B710 | Enhanced performance for R&S FSV3050 |
| B24 | RF preamplifier for 50 GHz models |
| B40 | 40 MHz analysis bandwidth |
| B200 | 200 MHz analysis bandwidth |
| B1 | Side carry handles |
| B3 | Audio demodulator |
| B5 | Additional interfaces |
| B5E | Additional interfaces |
| B10 | External generator control |
| B18 | Spare hard drive
(R&SeFSV3-B20 option required) |
| B20 | Hard drve removable |
| B28V | Noise source control via BNC |
