RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels

Brand Name : RIGOL

Model Number : DS70304/DS70504

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Delivery Time : Negotiation

Product name : Digital Oscilloscope

Channels : 4

Condition : Brand New

Functions : Tested, in Full Working Conditions

Bandwidth : 3 GHz or 5 GHz

Calibration : Contact us

Contact Now

RIGOL DS70000 Series Digital Oscilloscope with Real-Time Spectrum Analysis to 5 GHz
Product Overview

The RIGOL DS70000 Series Digital Oscilloscope with Real-Time Spectrum Analysis to 5 GHz represents cutting-edge measurement technology for demanding design applications.

Product Description

RIGOL DS70000 series digital oscilloscope adopts RIGOL's proprietary "Phoenix" chipset, delivering exceptional performance with a maximum sample rate of 20 GSa/s and 5 GHz bandwidth. Built on RIGOL's advanced UltraVision III technical platform, this series achieves industry-leading specifications including capture rates up to millions of waveforms per second, 2 Gpts memory depth, 8-16 bits adjustable resolution, and 10,000 FFTs/s.

The DS70000 series features a main 15.6-inch HD capacitive multi-touch screen with electronically controlled one-button screen inclination for optimal signal visualization and analysis. A secondary 3.5-inch touch screen provides customized function and shortcut menu display, creating an exceptional human-machine interface experience.

Key Features
  • Analog channel bandwidth: Maximum 5 GHz with 4 analog channels and 1 EXT channel
  • Vertical sensitivity range: 1 mV/div~10 V/div (1 MΩ), 1 mV/div~1 V/div (50 Ω)
  • Maximum memory depth: 2 Gpts
  • Waveform capture rate exceeding 1,000,000 wfms/s
  • Integrates 5 independent instruments: digital oscilloscope, real-time spectrum analyzer (option), digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyzer (option)
  • Timebase range: 50 ps/div~1000 s/div
  • Up to 2,000,000 frames of hardware real-time ceaseless waveforms recording and playback
  • 7 GHz high-end active differential probe PVA8700 (option)
  • Comprehensive trigger functions including Edge, Pulse, Slope, Video, Pattern, Duration, and multiple serial protocols
  • Multiple serial decoding functions (option): RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, MIL-STD-1553, and CAN-FD
  • Auto measurement of 41 waveform parameters with full-memory hardware measurement
  • Advanced math operations and built-in enhanced FFT analysis with peak search function
Product Images

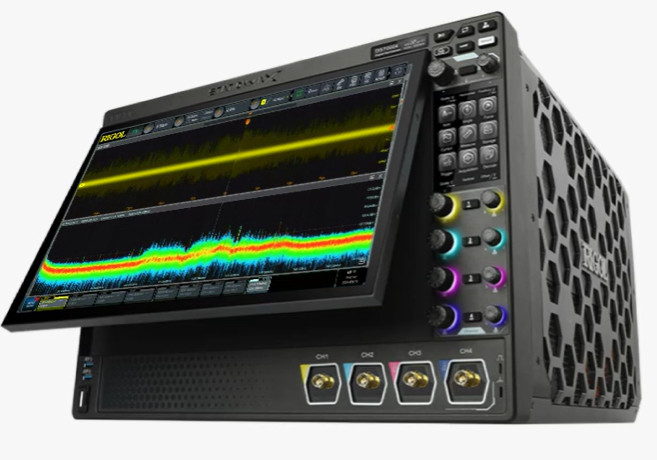

RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels

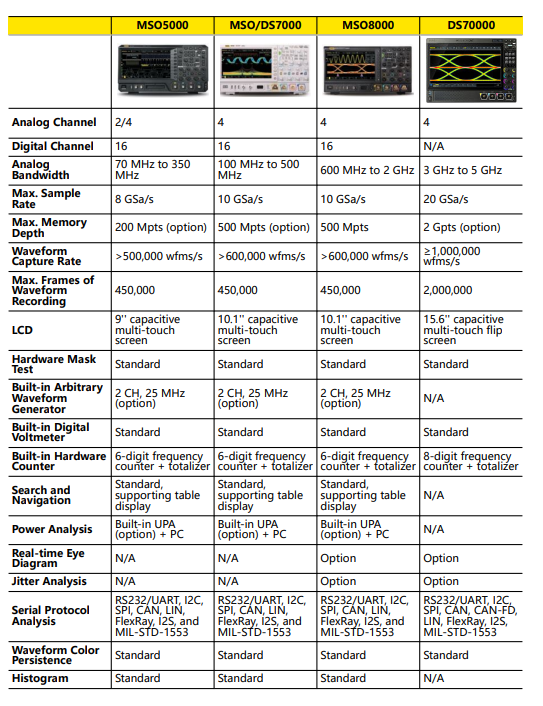

Order Information

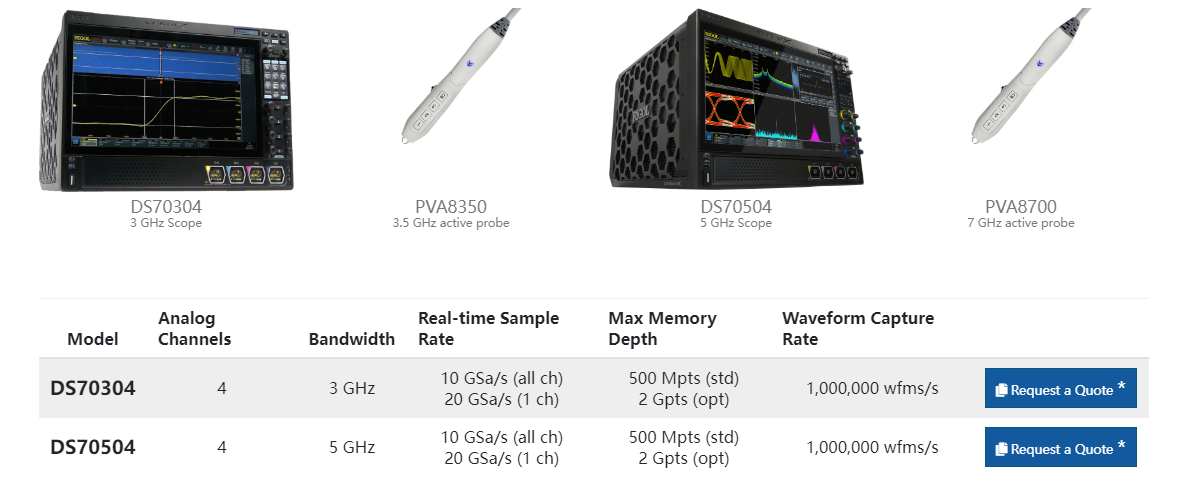

Models
Model Specifications
DS70304 3 GHz, 20 GSa/s, 500 Mpts, 4CH High-End Digital Oscilloscope
DS70504 5 GHz, 20 GSa/s, 500 Mpts, 4CH High-End Digital Oscilloscope
Standard Accessories
Item Description
Power Cord Conforming to the Standard of the Destination Country
USB Cable Standard USB connectivity cable
RP3500A 4 Passive HighZ Probes (500 MHz)
Upgrade Options
Option Code Description
DS70000-RL-20 2 Gpts Memory Depth Upgrade Option
DS70000-RTSA Real-Time Spectrum Analysis (RTSA)
Pre-compliance Test Software
Option Code Description
DS70000-USBC USB2.0 Pre-compliance Test
DS70000-USBC 100Base-T Ethernet Pre-compliance Test
Measurement Application Options
Option Code Description
DS70000-JITTA Advanced Eye Diagram and Jitter Analysis
Serial Protocol Analysis Options
Option Code Description
DS70000-EMBDA Embedded Serial Bus Trigger and Analysis (RS232/UART, I2C, and SPI)
DS70000-AUTOA Auto Serial Bus Trigger and Analysis (CAN, CAN-FD, LIN, FlexRay)
DS70000-AUDIOA Audio Serial Bus Trigger and Analysis (I2S)
DS70000-AEROA Aerospace Serial Bus Trigger and Analysis (MIL-STD-1553)
Our Service
  • One-stop service from manufacture to shipping
  • Inquiries related to our products or prices replied within 24 hours
  • Well-trained and experienced staff answering all inquiries in fluent English
  • Distributor support offered for unique designs and current models
  • Protection of your sales area, design ideas, and all private information
Additional Product Images

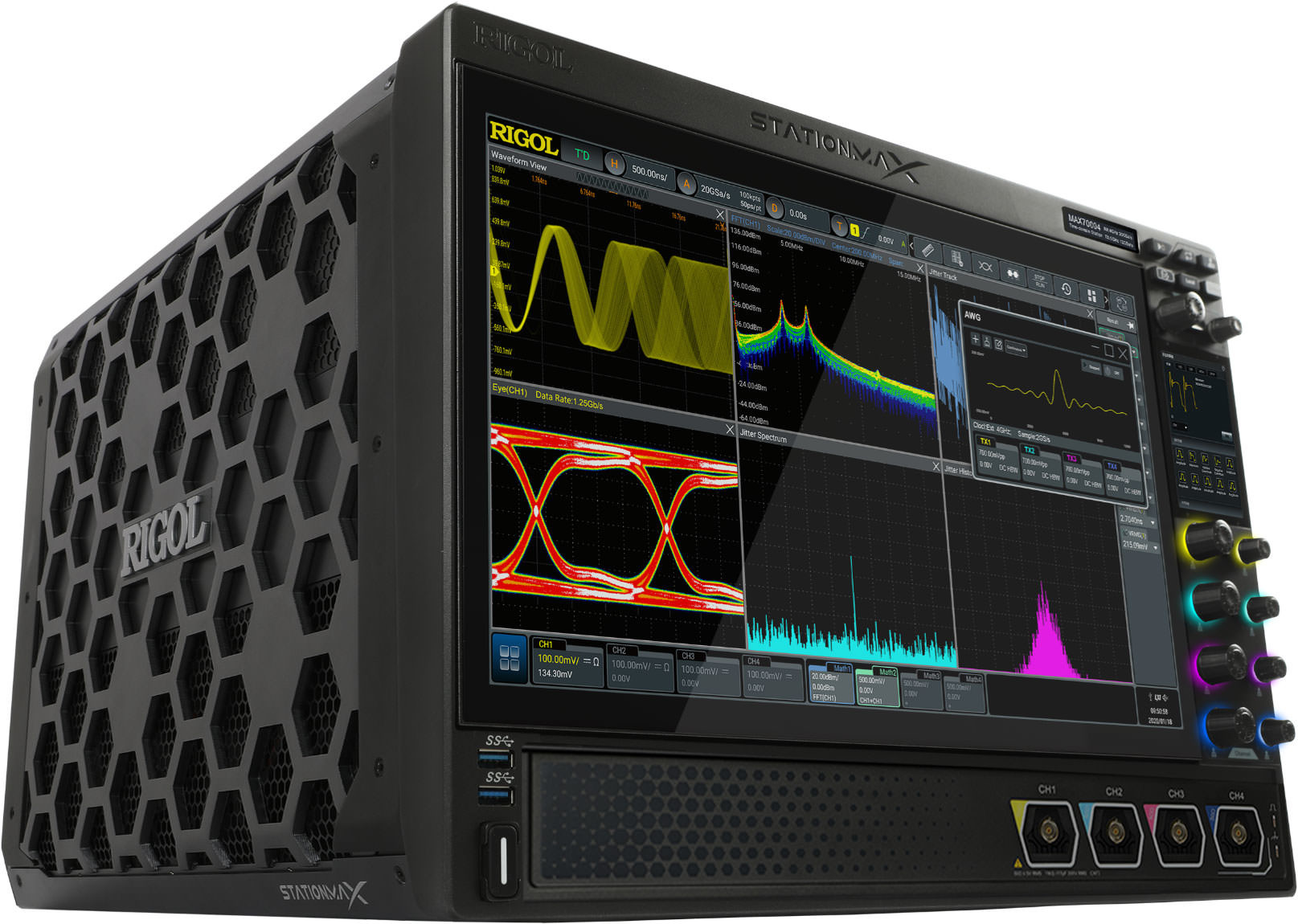

RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels RIGOL DS70000 Series Digital Oscilloscope with 5 GHz Bandwidth 20 GSa/s Sample Rate and 4 Channels
