National Instruments PXI-8820 PXI Controller with 132 MB/s Bandwidth and Dual-Core Intel Celeron Processor LabVIEW Real-Time Compatible

Brand Name : National Instruments

Model Number : PXI-8820

Certification : ISO17025

Place of Origin : Hungary

MOQ : 1

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : In Stock

Delivery Time : 1~3 Working Days

Packaging Details : Carton

Product name : PXI-8820

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

DSP48 Slices (25 × 18 Multiplier) : 32

Embedded Block RAM (kbits) : 1152

Default timebase : 40 MHz

Timebase accuracy : ±100 ppm, 250 ps peak-to-peak jitter

Number of DMA channels : 3

Number of general-purpose channels : 132, configurable as 132 single-ended, 66 differential, or a combination of both

Contact Now

National Instruments PXI-8820 PXI Controller

The National Instruments PXI-8820 PXI Controller features a Dual-Core Intel Celeron Processor, 2 GB DDR3 RAM, and 4 Hi-Speed USB Ports. This embedded controller (Part Numbers: 782920-04 and 782920-33) incorporates a 2.2 GHz CPU with 2 MB cache and offers 132 MB/s maximum controller bandwidth.

Technical Specifications
Model PXI-8820
Manufacturer National Instruments
Part Numbers 782920-04 and 782920-33
Type PXI Controller
Processor Core Intel Celeron
Maximum Controller Bandwidth 132 MB/s
Slot Requirements One System Slot and One Controller Expansion Slot
Serial Ports One RS-232
Parallel Port One
Hi-Speed USB Four 2.0 Ports
On-Die L2 Cache 2 MB
Operating Temperature 5 to 50 °C
Storage Temperature -40 to 65 °C
Dimensions 1.59 in. × 5.14 in. × 8.51 in. (4.0 cm × 13 cm × 21.6 cm)
Weight 1.90 lb. (0.86 kg)
Warranty 2-3 Year Warranty
Key Features
  • Compatible with 32-bit Windows 7 operating system and LabVIEW Real-Time OS
  • Standard I/O includes DisplayPort, RS-232 Serial Port, Gigabit Ethernet, and parallel port
  • Battery-backed dedicated memory for system CMOS storage
  • Modular PC in 3U-size form factor with front panel SMB connector
  • RAM upgradeable via SO-DIMM
  • Internal 2.5 in. SATA notebook hard drive
  • Supports various boot options including PXE servers, USB, PCI, or PCIe devices
  • PS/2 input device support via USB Y-splitter cable

User Manual and Maintenance Manual available for download.

Product Images
National Instruments PXI-8820 PXI Controller with 132 MB/s Bandwidth and Dual-Core Intel Celeron Processor LabVIEW Real-Time Compatible National Instruments PXI-8820 PXI Controller with 132 MB/s Bandwidth and Dual-Core Intel Celeron Processor LabVIEW Real-Time Compatible
Packaging & Shipping

We provide carton packaging and can also create wooden cartons when necessary to ensure safe delivery.

National Instruments PXI-8820 PXI Controller with 132 MB/s Bandwidth and Dual-Core Intel Celeron Processor LabVIEW Real-Time Compatible National Instruments PXI-8820 PXI Controller with 132 MB/s Bandwidth and Dual-Core Intel Celeron Processor LabVIEW Real-Time Compatible National Instruments PXI-8820 PXI Controller with 132 MB/s Bandwidth and Dual-Core Intel Celeron Processor LabVIEW Real-Time Compatible
Our Services
  • One-stop service from manufacture to shipping
  • 24-hour response to product or price inquiries
  • Well-trained English-speaking staff for all inquiries
  • Distributor support for unique designs and current models
  • Complete protection of your sales area, design ideas, and private information
Company Information

Meigaolan is a test and measurement solutions and production supplier, founded in 2003 and located in Shenzhen, China.

Our highly skilled Sale Representatives can assist you with all of your new and refurbished test equipment needs, providing EMC test solutions and building your Anechoic chamber.

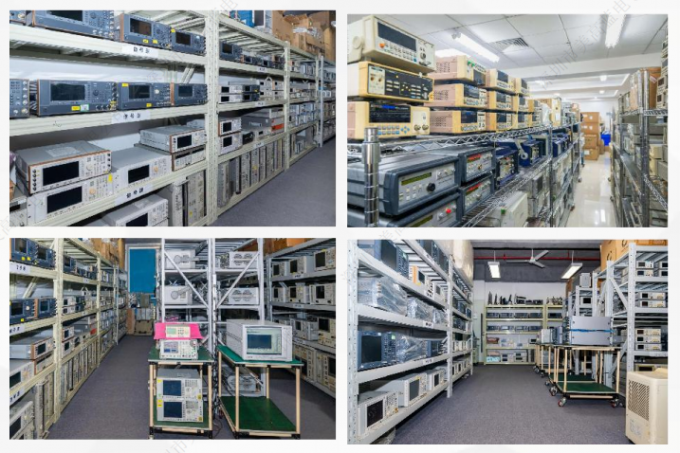

Meigaolan has 6 branch offices, test and repair labs, and stocks throughout China (Shenzhen, Shanghai, Wuhan, Chengdu, Xi'an, Kushan). A Vietnam branch company was established in 2023 to provide closer service to our customers.
